Matrice 300 RTK

Matrice 300 RTK

Matrice 300 RTK

Graceland Drones is a drone service provider (DSP) from Africa, which includes photovoltaic (PV) solar farms inspections among its wide range of drone inspections it offers. With certified and experienced pilots, Graceland Drones can carry out inspections in difficult and hard-to-reach areas, or in areas where an inspection could take days or even weeks, in a much shorter time.

  • Exterior Design
  • 4K Camera Lens
  • Performance

In recent years, drones have developed their services in the solar industry, focusing on monitoring and surveillance needs. Drones are able to monitor large-scale photovoltaic power plants in a much shorter time compared to manual inspection or other remote monitoring methods.
Drones are capable of capturing visual and thermal imaging at a very high resolution, with the ability to see photovoltaic modules and other components of the photovoltaic installation. When the drone flies over a location, it can identify  potential problems with solar panels and their components.
From these images, analysts can interpret the condition of the photovoltaic (PV) solar farm. Thanks to drone technology, the monitoring process is more intelligent and accessible by offering a wide range of services that could benefit for the solar industry owners. Drones are enabling technicians to identify problems that can arise in a much shorter time.

In recent years, drones have developed their services in the solar industry, focusing on monitoring and surveillance needs. Drones are able to monitor
large-scale photovoltaic power plants in a much shorter time compared to manual inspection or other remote monitoring methods.
Drones are capable of capturing visual and thermal imaging at a very high resolution, with the ability to see photovoltaic modules and other
components of the photovoltaic installation.
When the drone flies over a location, it can identify potential problems with solar panels and their components.
From these images, analysts can interpret the condition of the photovoltaic (PV) solar farm. Thanks to drone technology, the monitoring process is more intelligent and accessible by offering a wide range of services that could benefit for the solar industry owners. Drones are enabling technicians to identify problems that can arise in a much shorter time.
The services provided by our intelligent drone systems in photovoltaic (PV) solar farms are given as follows:
-Allows on-site asset security through visual monitoring
-Thermal image to identify faults in the PV module or array
-Information on dust accumulation
-Monitoring of possible shadows on the photovoltaic array
-Enabling and optimizing inspection reliability
-Lesser time-consuming monitoring facility
-Continuous monitoring during the construction phase
-Can quickly detect the threats of equipment theft enabling
safety
The benefits offered by intelligent drone systems in photovoltaic (PV) solar farms are given as follows:
-Improved operation and maintenance of the photovoltaic
(PV) plant
-Time-saving during the inspection visits
-Increased energy productivity
-Accuracy in finding the faults
-Aims to boost investment returns
-Increases inspection performance
-Wide integration and multitasking ability
-Long-term data maintenance

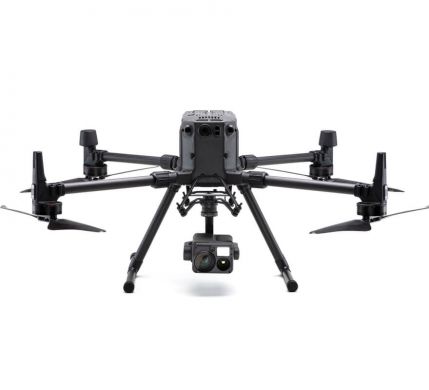

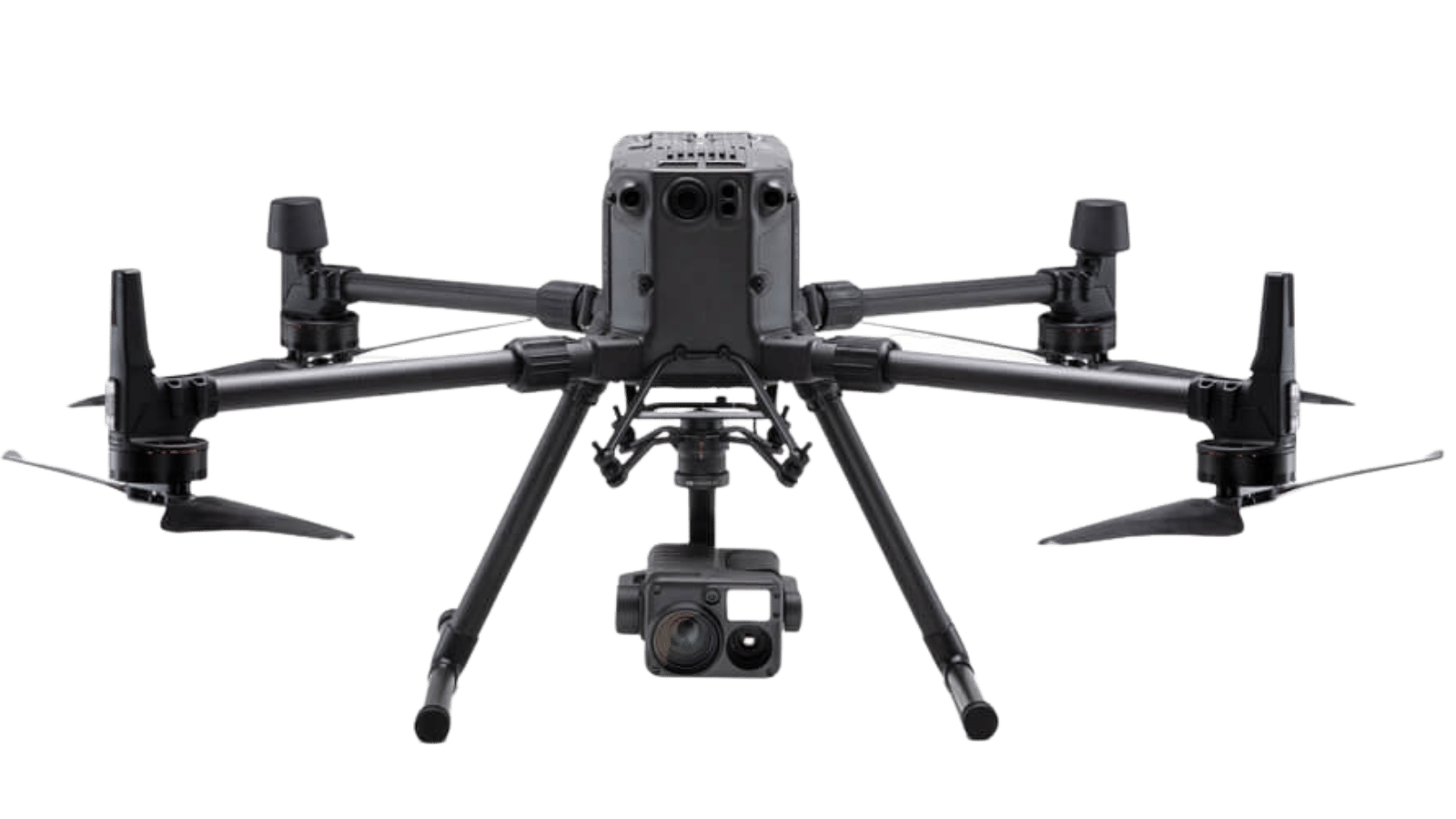

Matrice 300 RTK

Capture Your Best Moments With High Quality Lens
Multiple Payload Configurations

Configure your M300 RTK to fit your mission needs. Mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg.

Live Missions Recording

Record mission actions such as aircraft movement, gimbal orientation, photo shooting, and zoom level to create sample mission files for future automated inspections.

AI Spot Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.

Waypoints 2.0

Create up to 65,535 waypoints and set multiple actions for one or more payloads, including 3 party ones, at each waypoint. Flightpath planning is also optimized to maximize flexibility and efficiency for your missions.

  • 55 min Max Flight Time, 23 m/s Max Flight Speed
  • 15 km Transmission Range, 1080p Triple-channel Video
  • Supports up to 3 payloads, 2.7 kg maximum payload capacity
  • Automate inspections with Live Mission Recording and AI Spot Check
  • Advanced algorithms enable PinPoint and Smart Track to obtain dynamic location information for subjects in view
  • 6 Directional Sensing and Positioning system enhances flight safety
  • Password-protected access to aircraft and data
  • AirSense ADS-B Receiver warns of nearby airplanes and helicopters
  • Secure data transmission with AES-256 encryption
  • DJI Pilot with Local Data Mode protects drone data
  • Operating Temperature: -20°C to 50°C

Ehanced Flight Performance

  • The refined airframe and propulsion system design gives you a more efficient and stable flight, even in harsh conditions.
    Max Flight Time: 55 mins
    Max Descend Speed: 7m/s
    Service Ceiling: 7000m
    Wind Resistance: 15m/s
    Max Speed: 23m/s

Smart Pin & Track

PinPoint

Mark an object in camera or map view with a quick tap, and advanced sensor fusion algorithms will immediately calculate its coordinates, which are projected to all camera views as an AR icon. The location of the subject is automatically shared with another remote controller, or to online platforms such as DJI FlightHub

Aviation Grade Situational Awareness

The M300 RTK adopts a new Primary Flight Display (PFD) that integrates flight, navigation, and obstacle information to empower the pilot with exceptional situational awareness.

Smart Track

Identify and follow moving subjects like people, vehicles, and boats with the Smart Track function, where auto-zoom is applied for steady tracking and viewing. The subject’s dynamic location is continuously acquired and shared to another remote controller or to DJI FlightHub

A Powerful Vision System You Can Rely On

To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum
detection range of up to 40 m, with options to customize the aircraft’s sensing behavior via the DJI Pilot App.

Professional Maintenance for Drone Fleet

The new integrated Health Management System displays the current status of all systems, notification logs, and a preliminary troubleshooting guide. Also in the system are the aircraft’s flight logs, duration, and mileage throughout its entire lifecycle, and tips on aircraft care and maintenance.

Flight Information and Navigation Display

Flight information such as aircraft attitude, altitude, and velocity, as well as wind speed and wind direction, are all intuitively presented. Pilots can also view the live status of the aircraft’s heading, trajectory, PinPoint information, and home point projection, in a more efficient way.
Visualize all nearby obstacles at once with the new obstacle map, so you can be fully informed.

In The Box

Aircraft Body × 1
DJI Smart Controller Enterprise × 1
USB Charger × 1
USB-C Cable × 1
TB60 Intelligent Flight Battery × 2
WB37 Intelligent Battery × 1
2110 Propeller (CW) × 2
2110 Propeller (CCW) × 2
Landing Gear × 2
Spare Stick Cover (pair) × 1
Spare Propeller Holder × 2
Spare Gimbal Damper × 4
USB Cable (with Double A Ports) × 1
Vision System Calibration Plate × 1
Carrying Case × 1
Smart Controller Lanyard × 1
Rubber Port Cover (Set) × 1
Screws and Tools Set × 1
BS60 Intelligent Battery Station × 1
