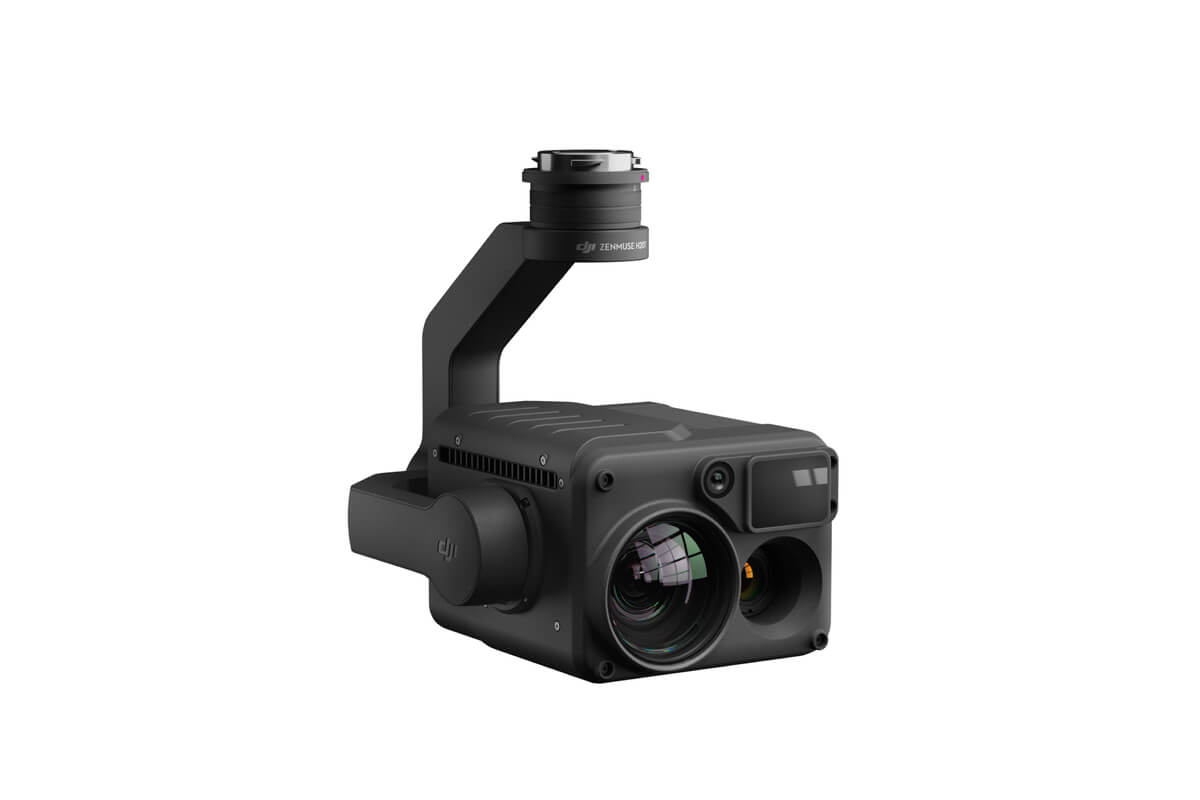

Zenmuse H20T

Zenmuse H20T

Zenmuse H20T

A quad-sensor solution that integrates a zoom camera, wide camera, a laser rangefinder, and a radiometric thermal camera, the H20T automates your missions with AI Spot-Check, High-Res Grid Photo, PinPoint, Smart Track, and accurate temperature measurement.

  • 20MP Zoom Camera
  • 12MP Wide Camera
  • 1200m Laser Rangefinder
  • 640 x 512px Radiometric Thermal Camera
  1. 12 MP Wide Camera 82.9° DFOV
  2. 20 MP Zoom Camera 23× Hybrid Optical Zoom
  3. Radiometric Thermal Camera 640×512 px
  4. Laser RangeFinder 1200 m Max Range
  5. IP44 Rating
    -20°C to 50°C Operating Temperature
  6. Active Image Stabilization and EIS
  7. Night Scene Mode

"H" for Hybrid

Multi-sensor payloads that bring a whole new meaning to mission
efficiency. The unique intelligence and integrated design provide
unprecedented aerial imaging capabilities for a range of commercial
drone applications.

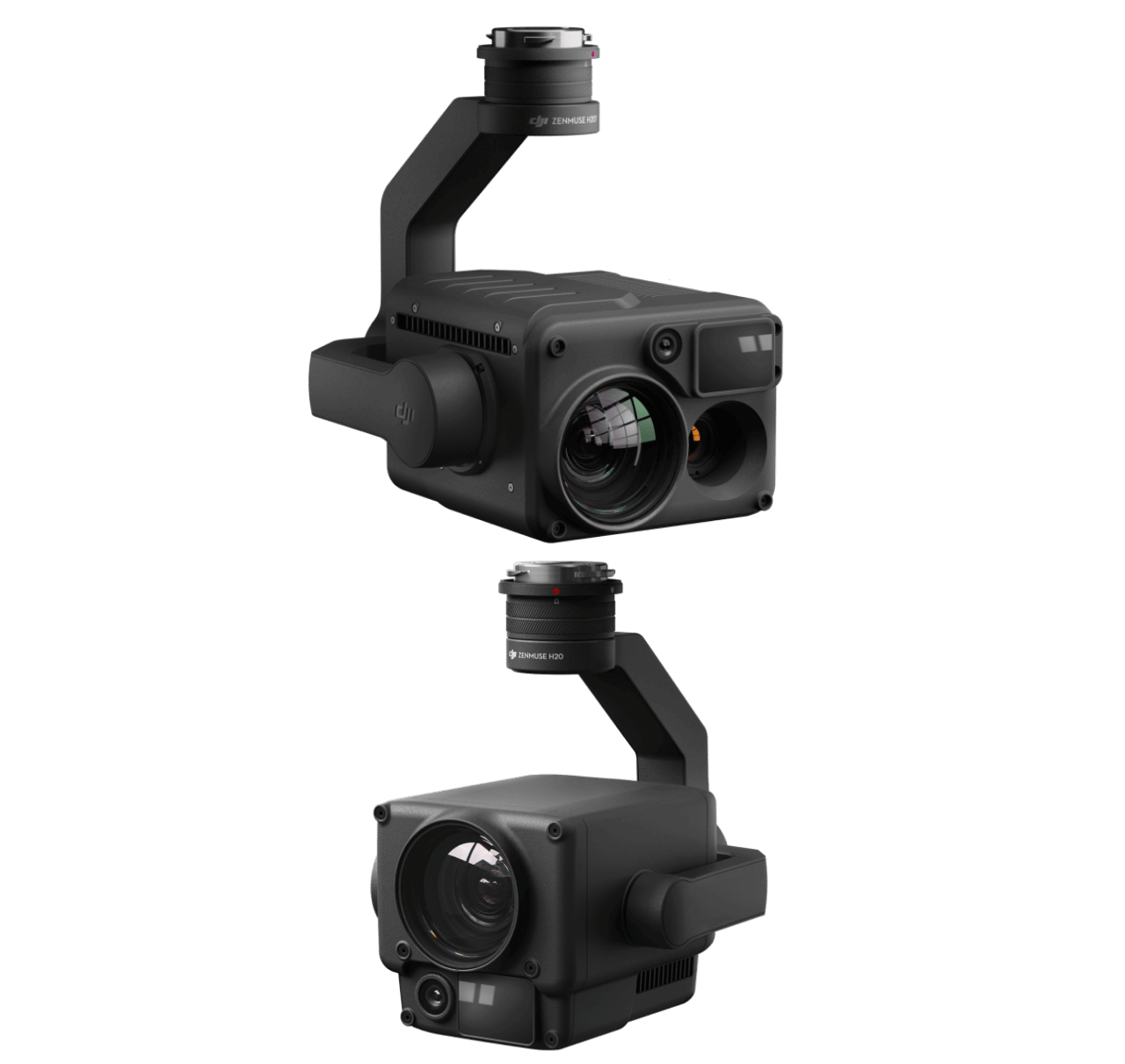

Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

All The Sensors You Need – In One

Capture everything. Up close or from a distance. In true living color or
thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that
unleashes advanced intelligent capabilities for DJI’s industrial drone
platforms.

Matrice 300 RTK

Capture Your Best Moments With High Quality Lens
Powerful Zoom Camera

23× Hybrid Optical Zoom,
200× Max Zoom
20 MP 1/1.7” CMOS Sensor
Video Resolution: 4K/30fps

Seemless User Interface

A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

AI Spot Check

Automate routine inspections and capture consistent results every time. Onboard AI recognizes the subject of interest and identifies it in subsequent automated missions to ensure consistent framing.

High-Res Grid Photo

Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.

Specifications

Weight: 828±5 g
Dimensions: 167×135×161 mm
Ingress Protection Rating: IP44
Operating Temperature: -20℃ to 50℃
Hybrid Optical Zoom: 23×
Zoom Camera Sensor: 1/1.7″ CMOS, 20 MP
Wide Camera Sensor: 1/2.3″ CMOS, 12 MP
Laser Rangefinder: Wave length 905 nm;
Measurement range: 3-1200 m (to a vertical surface with ≥12m diameter and 20% reflection rate)
Thermal Camera: Spectral band 8-14 μm; Video resolution 640×512 @ 30 Hz; Scene Range -40 °C to 150 °C (High Gain), -40 °C to 550 °C (Low Gain)
Compatibility: Matrice 300 RTK

What's in the Box

Gimbal and Camera × 1
MicroSD Card (32GB) × 1
Storage Case × 1
Lens Cleaning Cloth × 1

See The Unseen

PinPoint

A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates

Radiometric Thermal Camera

DFOV: 40.6°
Resolution: 640×512, Frame Rate: 30fps
Thermal Sensitivity: ≤ [email protected] (NEDT)

Smart Track

Identify and follow moving subjects like people andvehicles with the auto-zoom function, while continuously acquiring the subject’s dynamic location.

Wide Camera

Equivalent Focal Length: 24mm, DFOV: 82.9°

12 MP 1/2.3” CMOS Sensor

Laser Rangefinder

Range: 3 m – 1200 m

Accuracy: ± (0.2 m + D×0.15%)

Accurate Temp Measurement

Monitor the temperature of a site or an asset to eliminate any risks by acquiring a precise temperature reading from the air.

Intelligent Features

Temp Alarm:
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Isotherms:
Visualize a specific band of temperatures to find what is important.
Color Palettes:
Adjust the colors applied to the thermal data based on the needs of specific scenarios.
Gain Modes:
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
R-JPEG Images:
Images captured by the Zenmuse H20T are in the R-JPEG format with embedded temperature information. By importing these images into DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
